MODEL: 3232-144HS
French Country Estate
French Country Estate Specifications:
1st Flr Living Area: 2874
2nd Flr Living Area: 358
Bedrooms: 4
Bathrooms 4
House Width: 108 FT. 6 IN.
House Depth: 64 FT. 6 IN.
Garage-Carport: 3-Gar. Spaces.
Parking Entry: Front, Left Side.
Additional Features:
9 FT to 12 FT Ceilings., Covered Back Patio, Tray Ceilings.
A Great Traditional French Country Style Home.
This large custom estate style home accents a larger property. There is plenty of space with 4-4 bedrooms, 4 full baths, a formal dining room & separate adult area. there is also a bonus room with full bath over the 2-car garage.. The ceiling heights vary from 9 FT – 10 FT – 11 FT and 12 FT. Of course, ceiling heights can be changed by simply discussing this with your contractor. See our About Plans section for information on the construction process and additional information about our plans.
NOTE: THERE IS A 358 S.F. BONUS ROOM OVER THE 2 – car garage. GREAT FOR A GAME ROOM OR OFFICE. IT HAS A FULL BATH.
* 3232-144HS * FLOOR PLAN *
SPECIFICATIONS & FEATURES
ARCHITECTURAL STYLE
FRENCH COUNTRY ESTATE, FRENCH CANADIAN AND EUROPEAN ROOTS.
AREAS (SF)
1st FLOOR LIVING 2874, 2nd FLOOR LIVING 358, GARAGE 596, FRONT PORCH 176, BACK PORCH 169. **BONUS ROOM** OVER 2-CAR GARAGE 358. THE BONUS ROOM HAS A FULL BATH.
ROOF TYPE
HIP AND GABLE STYLE ROOF WITH HIP RIDGE ACCENTS. ARCHITECTURAL 25 YR. 3-TAB COMPOSITE SHINGLES, OVER MOISTURE RESISTANT UNDERLAYMENT, OVER 1/2″ MIN. STRUCTURAL WOOD SHEATHING, OVER 2×6 MIN. WOOD RAFTERS @ 16″O.C. MIN .
EXTERIOR WALL FRAMING
BRICK VENEER & CEMENT BOARD WALL FINISH. 2×4 OR 2×6 STUDS 16″O.C., RIGID SHEATHING & MOISTURE BARRIER.
INTERIOR WALL FRAMING
PARTITION WALLS 2×4 16″O.C. & 1/2 GYP. BOARD FLOATED & PAINTED. SEE FINISH SCHEDULES FOR FINAL FINISH.
CEILINGS CUSTOMIZATION
9 FT. CEILINGS AROUND EXTERIOR WALLS, 10 FT. TO 12 FT. IN MAJOR LIVING AREAS. POP UP (TRAY) CEILING ACCENTS IN KITCHEN, LIVING, MASTER SUITE.
KITCHEN DINING LIVING
ROOMS ARRANGEMENT PROVIDE A WONDERFUL ENTERTAINING SETTING. THE KITCHEN AND KEEPING ROOMS ARE ADJACENT TO EACH OTHER AS THE LIVING AND FORMAL DINING AREAS.
BEDROOMS
THE 4-5 ROOMS ARRANGED AS A PRIVACY SPLIT PLAN. THE 2nd FLOOR BONUS ROOM HAS A FULL BATH ROOM.
GARAGE LAYOUT
2-CAR PARKING GARAGE AND 3RD SINGLE STALL GARAGE WITH ATTIC ACCESS. THE DRIVEWAY IS ON LEFT OF HOME.
OUTSIDE SPACES
COVERED FRONT PORCH ENTRY. SIDE BACK PORCH. THIS HOME LAYOUT PROVIDES A PRIVATE BACK YARD FOR A POOL OR SPORTS AREA.
Note: The plan sheets are set up to print on 24″ x 36″ size media (full size, A4). When printing full size sheets the drafting scale will be 1/4″ = 1′-0″. The plan sheets can be reduced to print on 11″ x 17″ media (half size, A2). Thus reducing the scale to ~1/8″ = 1′-0″. We have made efforts to keep the text readable @ the smaller scale. The half size plan sheets will be a great convenience saving costs of printing on the full size sheets.
The Cover Sheet is like a Table of Contents. It shows the front view (or elevation) of the structure. An index of plan sheets, a table of abbreviations, a table of square footage by area, and listings of the Building Codes used.

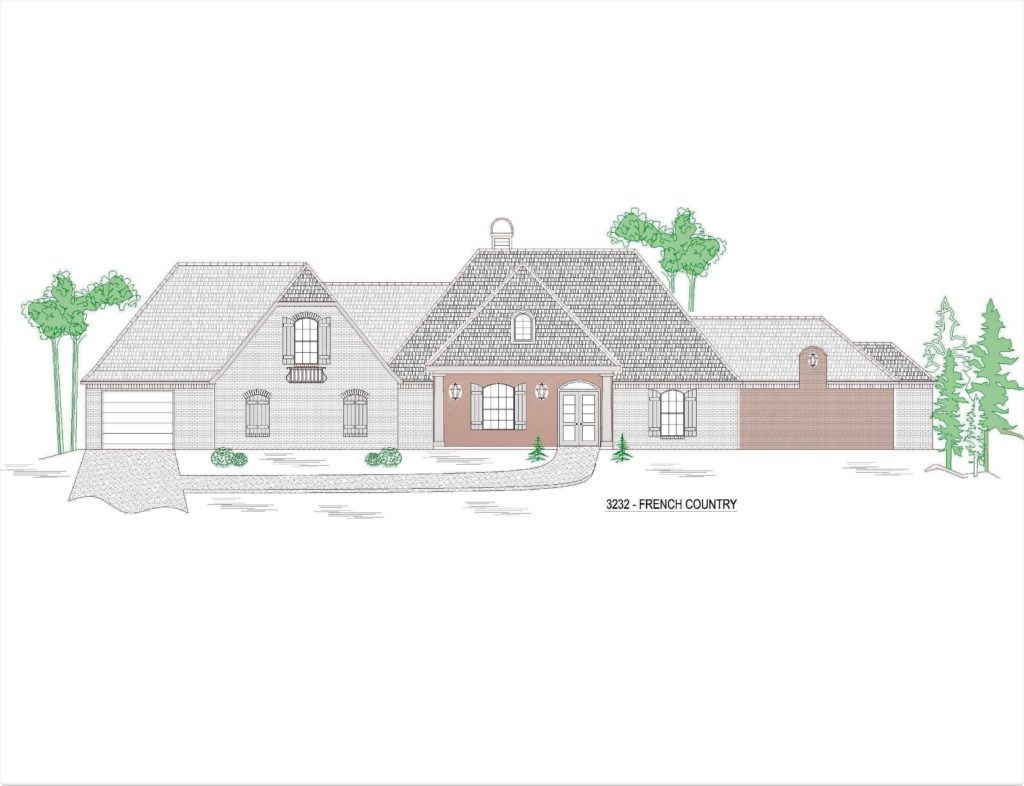

This plan sheet shows the front & one side elevation with details defining the geometry, special features, and materials used to construct the house.
This plan sheet shows the rear & other side elevation with details defining the geometry, special features, and materials used to construct the house.
This plan sheet shows the floor plan with construction dimensions. Walls, doors, windows, cabinets, casework, & plumbing locations. House plan area table. Porches, garages, specialties. Also shown on the sheet are the electrical and lighting systems and plan symbol legends.
This plan sheet has Schedules, (spread sheets or tables), that describe the materials, sizes, and quantities for doors, windows, and room finishes. Also shown is a list of General Construction Notes & Requirements for this house project.
This plan sheet shows a “bird’s eye view” of the roof, plan view. Roof pitches & slopes are indicated with the relationship of the roof overhang to the main roof. Standard roof & recommended material installation details.
This plan sheet shows several wall sections and details of common & specific construction details. Also recommended foundation, rough framing, & finish details. Also general notes addressing the contractors responsibility to follow a safe & professional work ethic.
This plan sheet shows a concrete slab on grade foundation plan. It is an option to purchase. Please be sure this is the type of foundation you will need Your local code officials may require a registered architect or engineer to review & “Seal” the design. This plan was approved for construction at the time and place the house was originally constructed.
PURCHASE PROCESS, Simply add your plan to cart, choose method of payment. After purchase is complete you will be directed to our Thank You page to download your plan. You will also receive an email from “SALES DEPT” with a download link and the usual PayPal purchase receipt email in within a few minutes. You are allowed 3 downloads within 24 hours.
