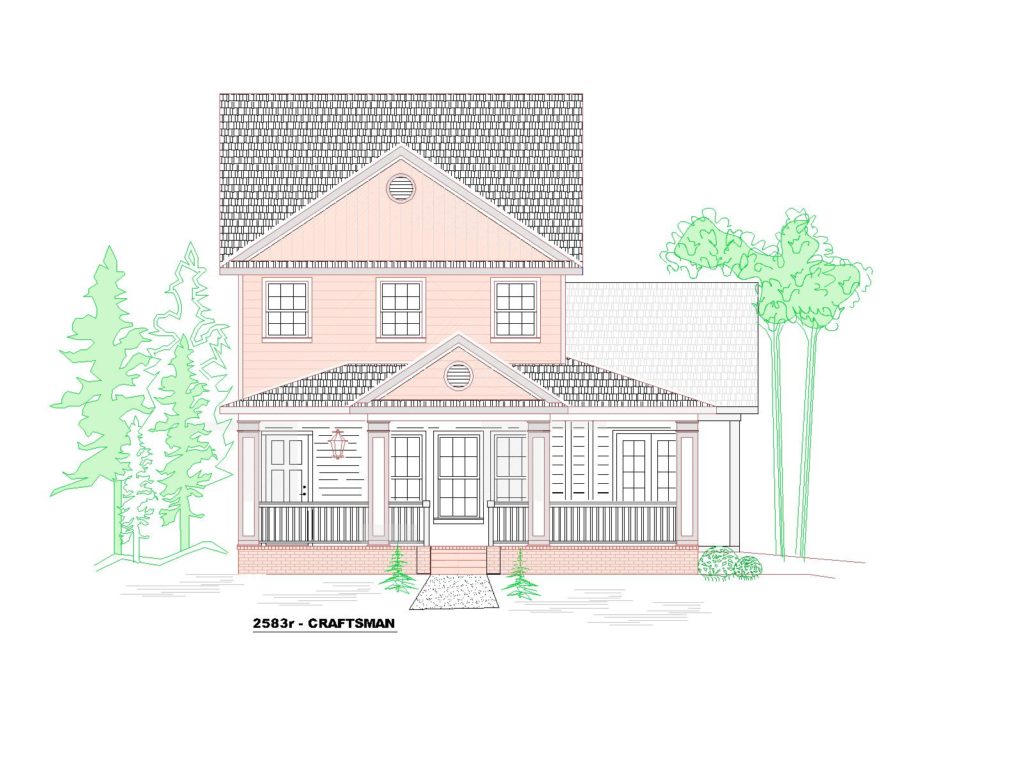

MODEL: 2583r-233GR
CRAFTSMAN
Craftsman 2583r-233GR Specifications:
1st Flr Living Area: 1671
2nd Flr Living Area: 912
Bedrooms: 3
Bathrooms 3
House Width: 36 FT. 0 IN.
House Depth: 90 FT. 6 IN.
Garage-Carport: 2-Gar-Spaces.
Parking Entry: Rear.
Additional Features:
Bonus Room 3rd Floor., Open Living-Kitchen
A Great Traditional Craftsman Style Home.
This Craftsman style home is perfect for narrow lots. There is plenty of space with 3-4 bedrooms, 2 full and 1 half bath, a formal dining room & separate adult area. there is also a bonus room over the 2nd floor living area.. The ceiling height is 10 FT on the 1st floor to 9 FT on the 2nd floor. Of course, ceiling heights can be changed by simply discussing this with your contractor. See our About Plans section for information on the construction process and additional information about our plans.
NOTE: THERE IS A 345 S.F. BONUS ROOM OVER THE 2nd FLOOR LIVING AREA. GREAT FOR A GAME ROOM OR OFFICE.
* 2583r-233GR * FLOOR PLAN *
SPECIFICATIONS & FEATURES
ARCHITECTURAL STYLE
CRAFTSMAN, FRENCH CANADIAN AND EUROPEAN ROOTS.
AREAS (SF)
1st FLOOR LIVING 1671, 2nd FLOOR LIVING 912, GARAGE 579, FRONT PORCH 312, VERANDA 212. **BONUS ROOM** OVER 2nd FLOOR LIVING 345. THIS 3rd FLOOR COULD BE A GAME ROOM OR SPACIOUS OFFICE.
ROOF TYPE
GABLE STYLE ROOF WITH HIP ACCENTS. ARCHITECTURAL 25 YR. 3-TAB COMPOSITE SHINGLES, OVER MOISTURE RESISTANT UNDERLAYMENT, OVER 1/2″ MIN. STRUCTURAL WOOD SHEATHING, OVER 2×6 MIN. WOOD RAFTERS @ 16″O.C. MIN .
EXTERIOR WALL FRAMING
BRICK VENEER & CEMENT BOARD WALL FINISH. 2×4 OR 2×6 STUDS 16″O.C., RIGID SHEATHING & MOISTURE BARRIER.
INTERIOR WALL FRAMING
PARTITION WALLS 2×4 16″O.C. & 1/2 GYP. BOARD FLOATED & PAINTED. SEE FINISH SCHEDULES FOR FINAL FINISH.
CEILINGS CUSTOMIZATION
10 FT. CEILINGS 1st FLOOR, 9 FT. 2nd FLOOR. BONUS ROOM CEILING ADAPTABLE TO A TRAY POP-UP, CATHEDRAL, OR VAULTED. YOUR BUILDER WILL HAVE OPTIONS.
KITCHEN DINING LIVING
ROOMS ARRANGEMENT PROVIDE A WONDERFUL ENTERTAINING SETTING. THE KITCHEN AND DINING ROOMS ARE ADJACENT TO EACH OTHER CREATING THE OPEN SPACE.
BEDROOMS
THE 3-4 ROOMS ARRANGED AS A PRIVACY SPLIT PLAN. THE 2nd FLOOR LOFT-STUDY AREA COULD BE FRAMED IN AS A 4 th. BEDROOM.
GARAGE LAYOUT
2-CAR PARKING, RAISED WHEEL STOP, ATTIC ACCESS, REAR LOAD FROM STREET.
OUTSIDE SPACES
COVERED FRONT PORCH ENTRY. SIDE VERANDA CAN BE ACCESSED FROM DINING OR MASTER SUITE.
Note: The plan sheets are set up to print on 24″ x 36″ size media (full size, A4). When printing full size sheets the drafting scale will be 1/4″ = 1′-0″. The plan sheets can be reduced to print on 11″ x 17″ media (half size, A2). Thus reducing the scale to ~1/8″ = 1′-0″. We have made efforts to keep the text readable @ the smaller scale. The half size plan sheets will be a great convenience saving costs of printing on the full size sheets.
The Cover Sheet is like a Table of Contents. It shows the front view (or elevation) of the structure. An index of plan sheets, a table of abbreviations, a table of square footage by area, and listings of the Building Codes used.
This plan sheet shows the front & one side elevation with details defining the geometry, special features, and materials used to construct the house.
This plan sheet shows the rear & other side elevation with details defining the geometry, special features, and materials used to construct the house.
This plan sheet shows the floor plan with construction dimensions. Walls, doors, windows, cabinets, casework, & plumbing locations. House plan area table. Porches, garages, specialties. Also shown on the sheet are the electrical and lighting systems and plan symbol legends.
This plan sheet has Schedules, (spread sheets or tables), that describe the materials, sizes, and quantities for doors, windows, and room finishes. Also shown is a list of General Construction Notes & Requirements for this house project.
This plan sheet shows a “bird’s eye view” of the roof, plan view. Roof pitches & slopes are indicated with the relationship of the roof overhang to the main roof. Standard roof & recommended material installation details.
This plan sheet shows several wall sections and details of common & specific construction details. Also recommended foundation, rough framing, & finish details. Also general notes addressing the contractors responsibility to follow a safe & professional work ethic.
This plan sheet shows a concrete slab on grade foundation plan. It is an option to purchase. Please be sure this is the type of foundation you will need Your local code officials may require a registered architect or engineer to review & “Seal” the design. This plan was approved for construction at the time and place the house was originally constructed.
PURCHASE PROCESS, Simply add your plan to cart, choose method of payment. After purchase is complete you will be directed to our Thank You page to download your plan. You will also receive an email from “SALES DEPT” with a download link and the usual PayPal purchase receipt email in within a few minutes. You are allowed 3 downloads within 24 hours.
Builder
7-Sheet PDF Plan Set-
ADOBE PDF FILES
-
UNLIMITED ANY SIZE COPIES
-
DOWNLOAD PRINT IN MINUTES
-
COMPLETE 7 SHEET SET
Contractor
8-Sheet PDF Plan Set-
ADOBE PDF FILES
-
UNLIMITED ANY SIZE COPIES
-
DOWNLOAD PRINT IN MINUTES
-
COMPLETE 7 SHEET SET
-
SHEET 8 FOUNDATION PLAN
Designer
CAD File + PDF Plan Set-
ADOBE PDF FILES
-
UNLIMITED ANY SIZE COPIES
-
DOWNLOAD PRINT IN MINUTES
-
COMPLETE 7 SHEET SET
-
SHEET 8 FOUNDATION PLAN
-
AutoCad DWG CAD FILE w/ PDF SET
