MODEL: 2534-133HS
FRENCH COUNTRY
French Country 2534-133HS Specifications:
1st Flr Living Area: 2534
2nd Flr Living Area: n/a
Bedrooms: 3
Bathrooms 3
House Width: 86 FT. 0 IN.
House Depth: 68 FT. 0 IN.
Garage-Carport: Gar-2 Spaces.
Parking Entry: Side, Right.
Additional Features:
9 FT to 12 FT Ceilings., Conditioned Storage., Covered Back Patio
A Great Traditional French Country Style Custom Home.
This French Country plan is perfect for wider spacious lots. Having 3 bedrooms, 2 full and 1 half baths, a formal dining room & separate adult area, this plan can surely meet every growing family’s needs. There is generous conditioned storage room for the family with expensive outdoor gear. The ceiling heights vary from 9 foot to 12 foot. About Plans section for information on the construction process and additional information about our plans.
SPECIFICATIONS & FEATURES
ARCHITECTURAL STYLE
FRENCH COUNTRY, FRENCH CANADIAN AND EUROPEAN ROOTS.
AREAS (SF)
LIVING 2534, GARAGE AND STORAGE 864, FRONT PORCH 186, REAR PORCH 219.
ROOF TYPE
DUAL PITCH HIP ROOF, ARCHITECTURAL 25 YR. 3-TAB COMPOSITE SHINGLES.
EXTERIOR WALL FRAMING
BRICK VENEER, CEMENT BOARD WALL FINISH. 2×4 OR 2×6 STUDS 16″O.C., RIGID SHEATHING & MOISTURE BARRIER.
INTERIOR WALL FRAMING
PARTITION WALLS 2×4 16″O.C. & 1/2 GYP. BOARD FLOATED & PAINTED. SEE FINISH SCHEDULES FOR FINAL FINISH.
CEILINGS CUSTOMIZATION
9 FT. CEILINGS AROUND PERIMETER OF STRUCTURE, 12 FT. LIVING AND ENTRY, 10 FT. DINING & KITCHEN.
KITCHEN DINING LIVING
ROOMS ARRANGEMENT PROVIDE A WONDERFUL ENTERTAINING SETTING. THE CEILINGS HAVE ATTIC SPACE ABOVE TO ALLOW CONFIGURATIONS LIKE TRAY, POP UP, VAULTS, OR CATHEDRAL SHAPES.
BEDROOMS
ROOMS ARRANGED WITH PRIVACY PLAN. BEDROOM CEILINGS CAN BE CUSTOMIZED WITH TRAY (POP UP) CEILINGS, CATHEDRAL, AND VAULTED.
GARAGE LAYOUT
2-CAR PARKING, RAISED WHEEL STOP, ATTIC ACCESS, FRONT LOAD FROM STREET, RIGHT SIDE OF HOUSE.
OUTSIDE SPACES
COVERED FRONT PORCH ENTRY. REAR COVERED PRIVATE PORCH.
Note: The plan sheets are set up to print on 24″ x 36″ size media (full size, A4). When printing full size sheets the drafting scale will be 1/4″ = 1′-0″. The plan sheets can be reduced to print on 11″ x 17″ media (half size, A2). Thus reducing the scale to ~1/8″ = 1′-0″. We have made efforts to keep the text readable @ the smaller scale. The half size plan sheets will be a great convenience saving costs of printing on the full size sheets.
The Cover Sheet is like a Table of Contents. It shows the front view (or elevation) of the structure. An index of plan sheets, a table of abbreviations, a table of square footage by area, and listings of the Building Codes used.

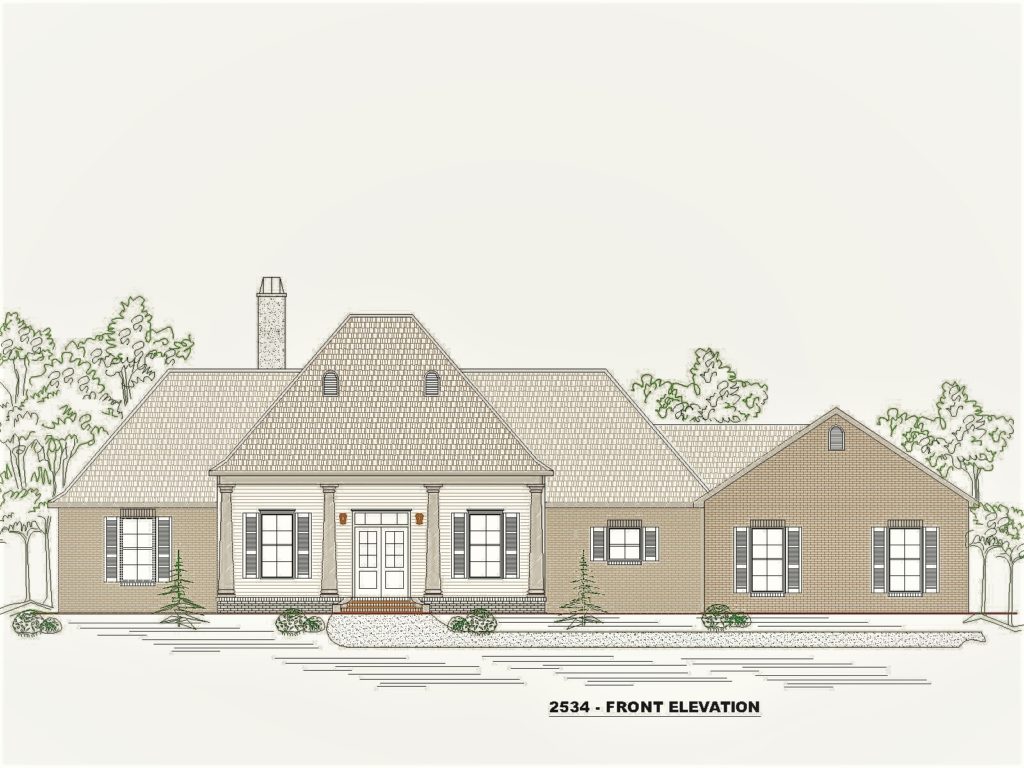

This plan sheet shows the front & one side elevation with details defining the geometry, special features, and materials used to construct the house.
This plan sheet shows the rear & other side elevation with details defining the geometry, special features, and materials used to construct the house.
This plan sheet shows the floor plan with construction dimensions. Walls, doors, windows, cabinets, casework, & plumbing locations. House plan area table. Porches, garages, specialties. Also shown on the sheet are the electrical and lighting systems and plan symbol legends.
This plan sheet has Schedules, (spread sheets or tables), that describe the materials, sizes, and quantities for doors, windows, and room finishes. Also shown is a list of General Construction Notes & Requirements for this house project.
This plan sheet shows a “bird’s eye view” of the roof, plan view. Roof pitches & slopes are indicated with the relationship of the roof overhang to the main roof. Standard roof & recommended material installation details.
This plan sheet shows several wall sections and details of common & specific construction details. Also recommended foundation, rough framing, & finish details. Also general notes addressing the contractors responsibility to follow a safe & professional work ethic.
This plan sheet shows a concrete slab on grade foundation plan. It is an option to purchase. Please be sure this is the type of foundation you will need Your local code officials may require a registered architect or engineer to review & “Seal” the design. This plan was approved for construction at the time and place the house was originally constructed.
PURCHASE PROCESS, Simply add your plan to cart, choose method of payment. After purchase is complete you will be directed to our Thank You page to download your plan. You will also receive an email from “SALES DEPT” with a download link and the usual PayPal purchase receipt email in within a few minutes. You are allowed 3 downloads within 24 hours.
Builder
7-Sheet PDF Plan Set-
ADOBE PDF FILES
-
UNLIMITED ANY SIZE COPIES
-
DOWNLOAD PRINT IN MINUTES
-
COMPLETE 7 SHEET SET
Contractor
8-Sheet PDF Plan Set-
ADOBE PDF FILES
-
UNLIMITED ANY SIZE COPIES
-
DOWNLOAD PRINT IN MINUTES
-
COMPLETE 7 SHEET SET
-
SHEET 8 FOUNDATION PLAN
Designer
CAD File + PDF Plan Set-
ADOBE PDF FILES
-
UNLIMITED ANY SIZE COPIES
-
DOWNLOAD PRINT IN MINUTES
-
COMPLETE 7 SHEET SET
-
SHEET 8 FOUNDATION PLAN
-
AutoCad DWG CAD FILE w/ PDF SET
